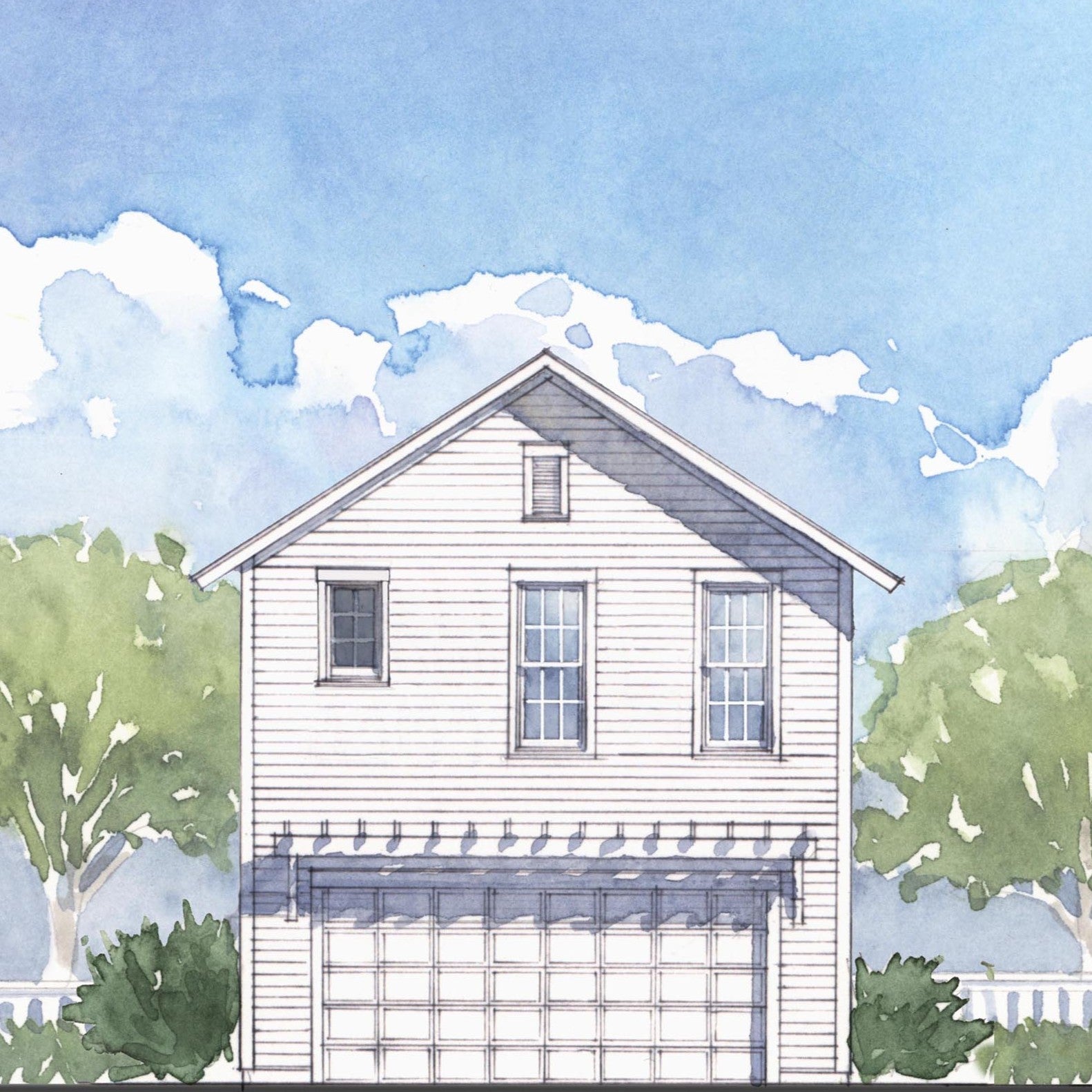

  • Illustration of a two-story house with a garage against a blue sky with clouds.

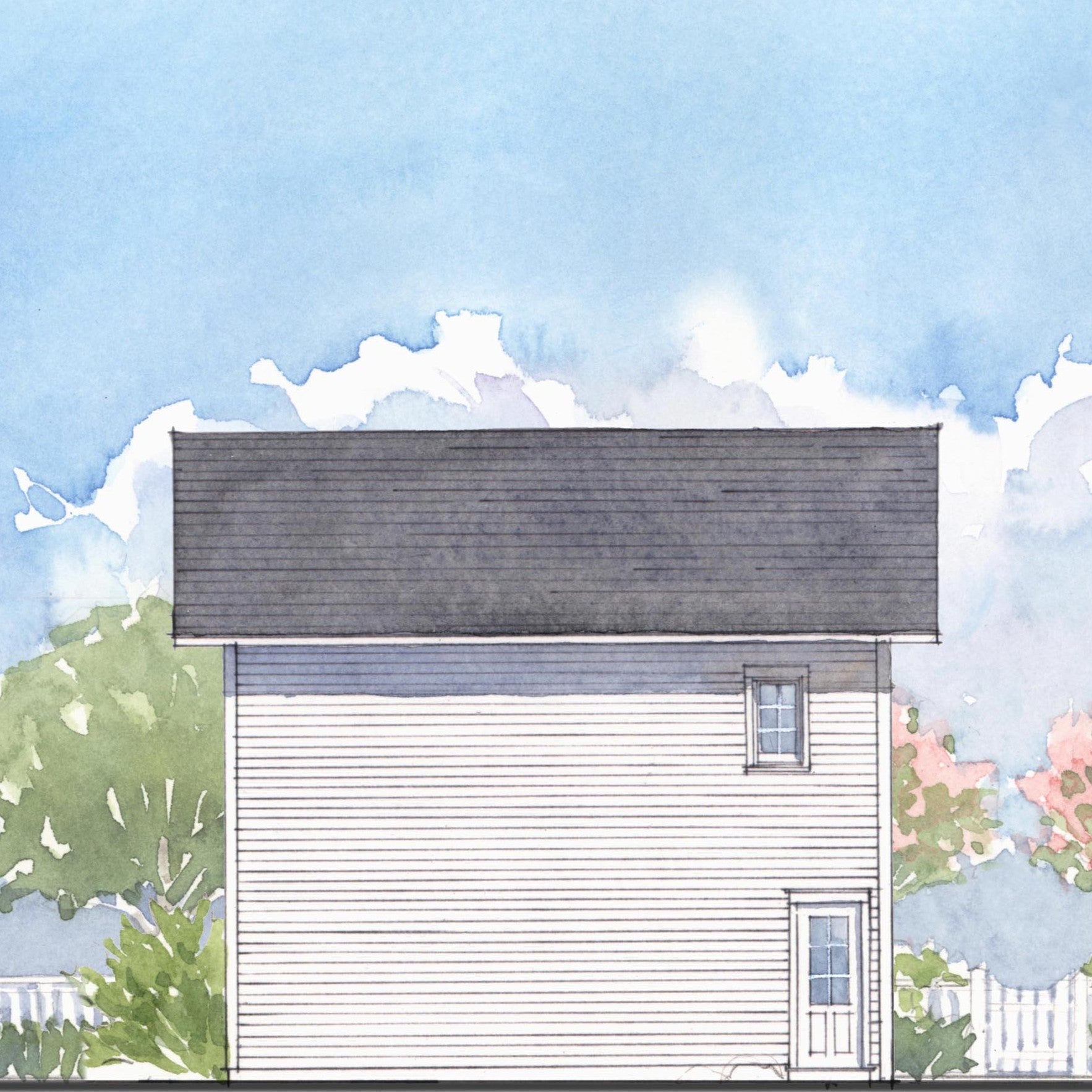

  • Illustration of a house with a gray roof against a blue sky with clouds.

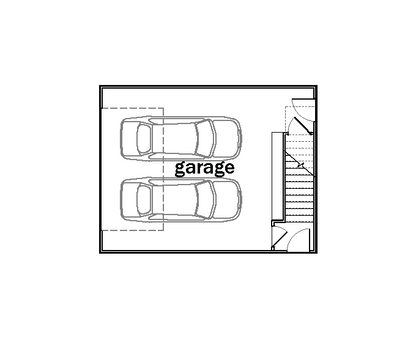

  • A black and white first-floor plan diagram showing two cars parked inside a garage, with a staircase on the right and the text '1ST FLOOR PLAN' below.

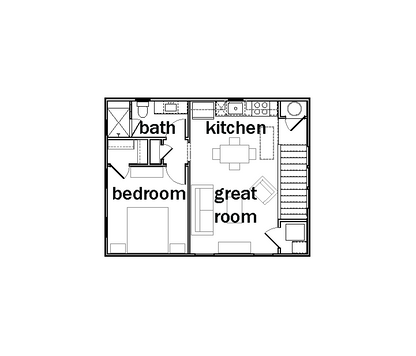

  • A black-and-white floor plan labeled '2ND FLOOR PLAN' showing a two-bedroom apartment layout with labeled rooms: bedroom, bathroom, kitchen, great room, and staircase.
  • A black-and-white schematic showing house footprint diagrams with dimensions
1 5

Add to cart to order a digital download of basic building plans - including CAD files - sufficient to plan your site and apply for financing, along with instructions to request a full set of architectural plans for your site.

Mayapple

Mayapple

Units: 1
Type: 1 bed / 1 bath
Stories: 2
Overall Size: 22’ x 28'
Area: 692 SF

This plan combines everyday convenience with financial flexibility. The ground floor provides a full two-car garage for the main household, while the one-bedroom unit above offers income potential, multigenerational living space, or a guest suite. Homeowners who want to add storage and parking for themselves can monetize the space with a useful housing unit above. This flexible upper-level layout makes the unit adaptable to a wide range of living needs. The apartment can be accessed from the garage or from a private outdoor entry.

The garage door may face any direction other than the stair wall for site flexibility. Explore the Allowable Variations. If you're interested in a custom modification, get in touch with the project designers here.

This building plan is authored and copyrighted by Flintlock Ltd Co. Each Designer retains all intellectual property rights and copyrights in and to their respective Building Plans and related documents. The Catalog is a compilation of plans licensed for use in the program and no part of the Catalog shall be deemed to transfer any rights, title, or interest in the Plans from the Designers to the Users. Any creation of derivative works outside of the pre-approved variations or without authorization from the applicable Designer is a violation of the Designer’s intellectual property rights. The Designers reserve all rights in this regard.
