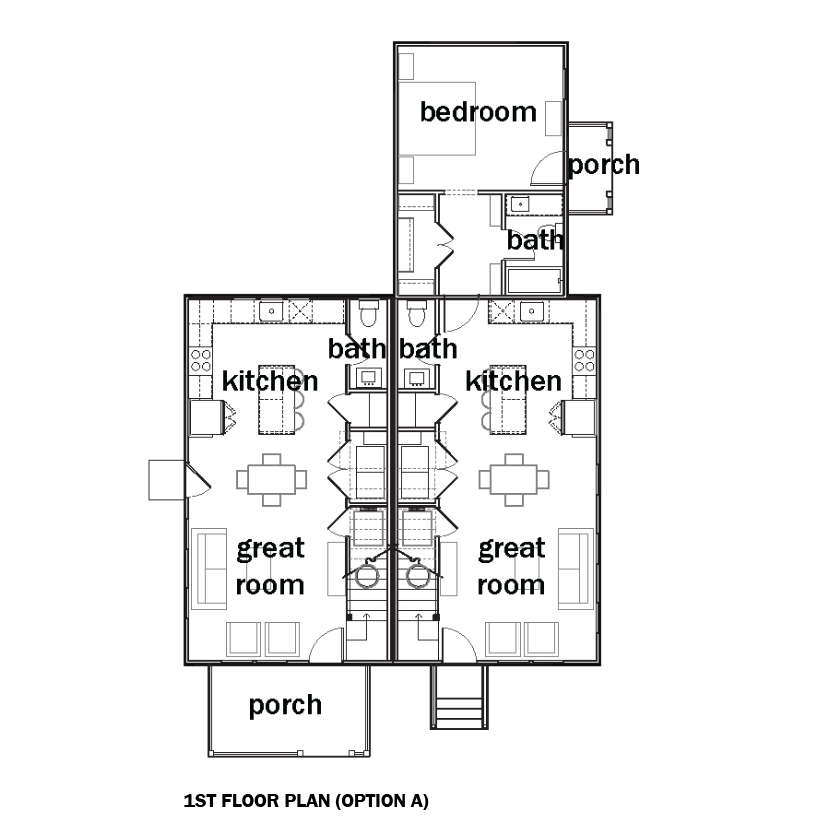

  • Architectural floor plan diagrams with labeled rooms including bedrooms, kitchen, great room, bath, porch, and staircase.

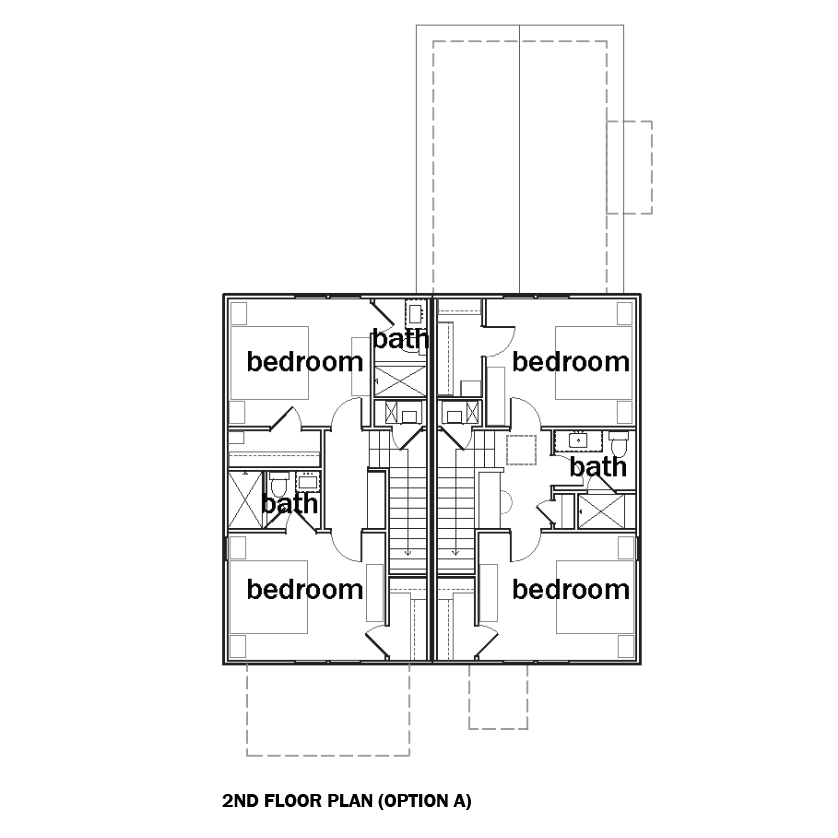

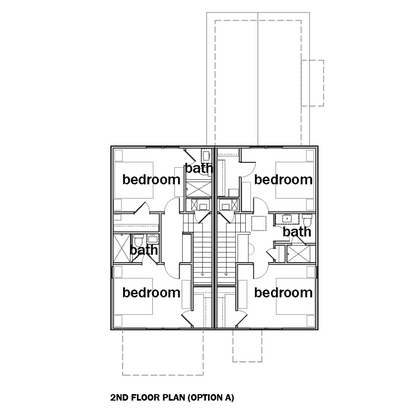

  • Architectural floor plan diagram showing a second story layout with labeled rooms including bedrooms, two baths, porch, and staircase.

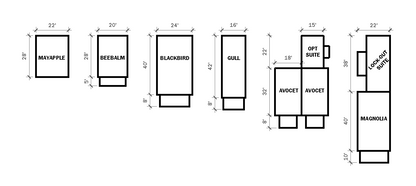

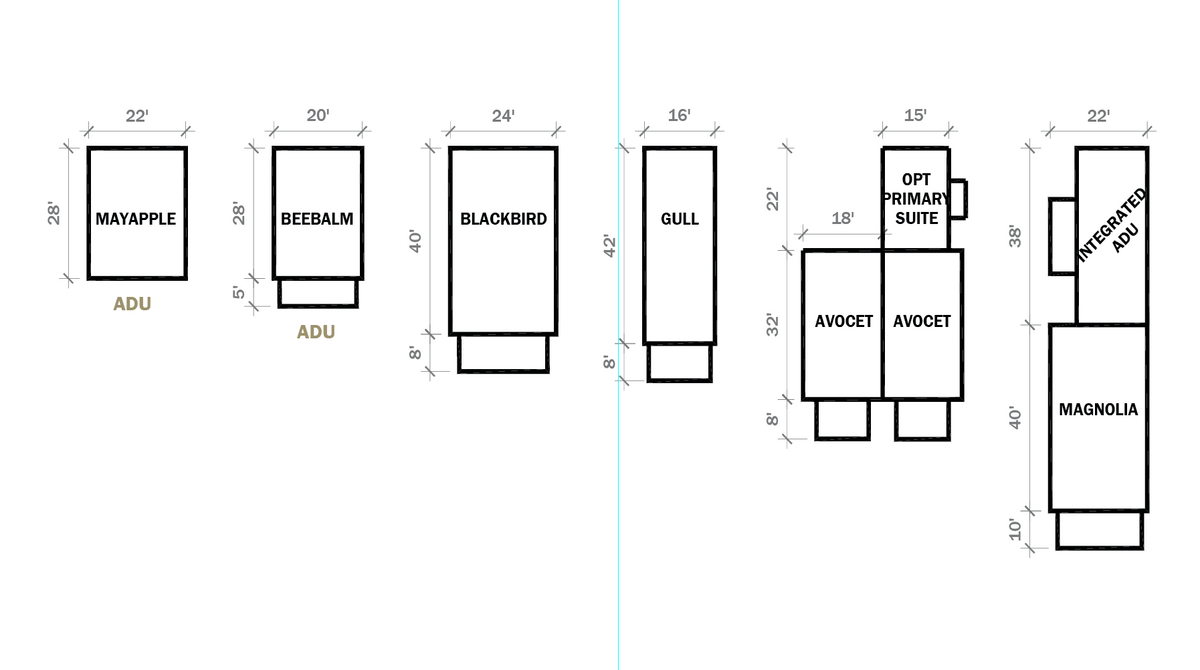

  • A black-and-white schematic showing house footprint diagrams with dimensions
1 4

Add to cart to order a digital download of basic building plans - including CAD files - sufficient to plan your site and apply for financing, along with instructions to request a full set of architectural plans for your site.

Avocet | Option A

Avocet | Option A

Units: 2
Type: 2 bed / 2.5 bath, or 2 bed /1.5 bath + 1 bed / 1 bath
Stories: 2
Overall Size: 36’ x 54’ + 8’ Porch, or 36’ x 32’ + 10’ porch
Area: 1,156 SF / unit + 329 SF

The Avocet is a compact and versatile plan offering a two-bedroom, 1.5-bath base layout with an optional primary suite addition for increased flexibility. Available as a freestanding cottage, duplex, or townhouse, it provides valuable attainable housing for roommates, couples, or small families.

An alternative upper-floor layout with two private bathrooms is also available, creating a more desirable roommate configuration. With multiple plan configurations and corresponding elevations, the Avocet offers the flexibility to create diverse streetscapes while meeting a variety of housing needs. Its adaptable design makes it a dependable option for filling housing gaps in a wide range of neighborhood contexts.

Alternate Configurations (optional):
a. Both units may be built with 1.5 baths (per right unit) or with 2.5 baths (per left unit).
b. Either kitchen layout may be used in either unit.
c. Optional first-floor primary suite may be built with either unit, neither unit, or both units
d. Plan can be built as a single unit.

Explore the Allowable Variations. If you're interested in a custom modification, get in touch with the project designers here.

This building plan is authored and copyrighted by Flintlock Ltd Co. Each Designer retains all intellectual property rights and copyrights in and to their respective Building Plans and related documents. The Catalog is a compilation of plans licensed for use in the program and no part of the Catalog shall be deemed to transfer any rights, title, or interest in the Plans from the Designers to the Users. Any creation of derivative works outside of the pre-approved variations or without authorization from the applicable Designer is a violation of the Designer’s intellectual property rights. The Designers reserve all rights in this regard.
